Captive: The first free NTFS read/write filesystem for GNU/Linux


Previous document Parent Next document


The principle of the project lies in the glue between Microsoft Windows NT kernel space environment and GNU/Linux user space process environment:

Microsoft Windows Subsystems Architecture
Microsoft Windows Subsystems Architecture


Captive Subsystems Architecture
Captive Subsystems Architecture


Existing Emulation Projects

There were two well-known Free projects emulating W32 subsystems to reach the compatibility with various W32 components: Wine and ReactOS. Sad moment is that the goals of this project do not fit very well into any role in those two ones. Therefore this project went its own way of emulation:

Emulation Projects Characteristics
Guest-OS Host-OS Implements W32 kernel library
Wine GNU/Linux W32 user space ntdll.dll
ReactOS i386 hardware W32 kernel and user space ntoskrnl.exe
this project GNU/Linux W32 kernel ntoskrnl.exe
Guest OS: An operating system that runs inside a virtual machine.
Host OS
Host OS: An operating system that runs on the host machine.

While ReactOS provides the necessary W32 kernel subsystem emulation code we also need to run such Guest-OS in the Host-OS GNU/Linux. Initially it was planned to extend Wine with the W32 kernel space emulation functionality but fortunately Steven Edwards pointed to the ReactOS which better suits the needs of this project by its already implemented W32 kernel space emulation.

The original reasons for developing ReactOS still make no sense to the author of this project. Free implementation of W32 platform standalone running on the machine hardware is no longer free as most od the W32 applications are usually closed source and the user still looses its freedom on the application level anyway. Even in the case of available free applications there still remains the disadvantage of loosing the Host-OS platform availability if implemented in the Wine style. For these ideology incompatibilities not much effort was made for acceptance the fixes and improvements of ReactOS by this project. Moreover new functionality is not being implemented to the ReactOS part but it is coded in Gnome style in the project specific source files place.

The most serious problem of ReactOS is its dependence on the direct i386 hardware instead of some Host-OS as required by the goals of this project. W32 is designed to be hardware-independent using its hal.dll. Unfortunately ReactOS does not follow this design and thus there are needed various patches and replaces of its various parts and its hardware-dependent code. Despite it ReactOS code base still made a big asset for this project.

Some API functions are provided both by ntdll.dll and ntoskrnl.exe in W32. Casper Hornstrup enlightened such functions calling conventions have to be differentiated as ntdll.dll lives in the user space (low address space – below 0x80000000) and ntoskrnl.exe in the kernel space (high address space – above 0x80000000). Although they contain slightly different set of symbols (functions) ntdll.dll still can be considered as a user space interface to the kernel space implementation by ntoskrnl.exe.

Currently there are no plans to ever extend the project's crossplatformity beyond the i386 processor (i386 used here as Intel architecture covering 32-bit processors compatible with i386, i486, ...).

Laws and Licensing Conditions

If you are an authorized user of Microsoft Windows NT the laws in some countries give you the right to fully handle the product in any way you want. Therefore you can disassemble the product even in the case you had to agree with the product license forbidding such disassembly as the country laws override any such license agreement.

Microsoft Service Pack

Sometimes you may have the legal license for Microsoft Windows NT but for various technical reasons you do not have the media and/or installation ready at the place of intended use of this project.

Fortunately Microsoft provides free (as in beer) update packages for its Microsoft Windows products called Service Packs; the latest one is Microsoft Windows XP Service Pack 1a.

This downloadable file contains the full versions of the essential files needed for the current stage of this product: ntfs.sys and ntoskrnl.exe. It even contains cdfs.sys and fastfat.sys for testing purposes.

Service Pack also contains EULA (End User License Agreement) paper disallowing any use of Service Pack outside its original intentions. According to the laws of some countries you need to be authorized user of the Microsoft Windows XP product to be allowed to use the files contained in such Service Pack without the bindings of its EULA. Even the interpretation of such laws may vary.

It would be a breach of the law by the project author to provide automatic (=hidden) functionality to download and extract the Service Pack files. On the other hand it is perfectly legal to ask user for his/her confirmation whether he/she is really the authorized user of Microsoft Windows XP product and download/extract the Service Pack files accordingly.

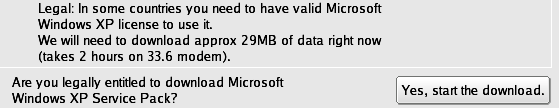

Microsoft Windows Drivers Acquire Affirmation
Microsoft Windows Drivers Acquire Affirmation
